| Name of system | Specification scope of the system |

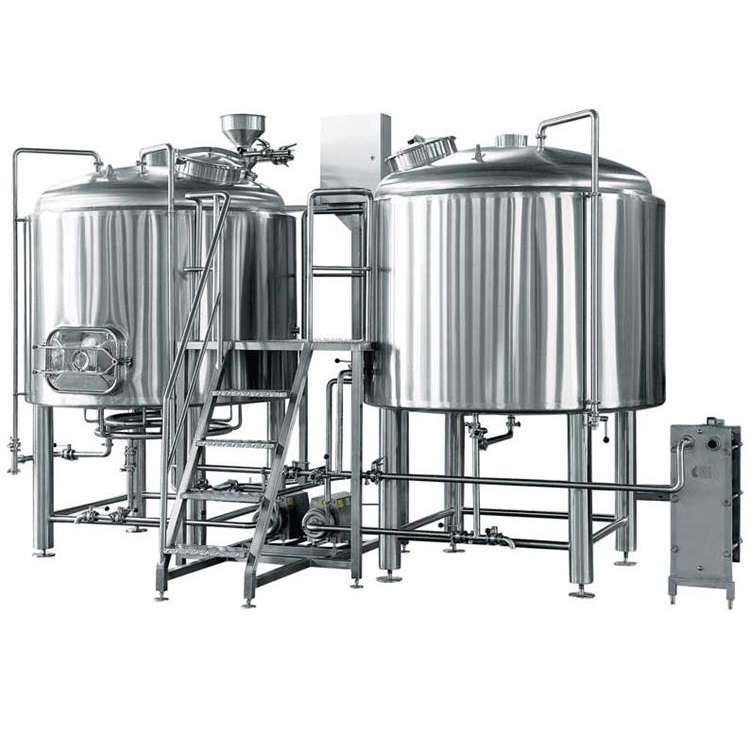

| Brewhouse System | With capacity 1000L/batch |
| Fermentation System | 6 fermentation tanks with volume 2000L |
| Chilling System | 1-2 pieces of refrigeration machine |
| Cleaning System | Stainless steel trolley with one or two tanks |
| Control system | Semi-automatic control with digital meters or full-automatic control with PLC |
| Equipment parts | Full set of supporting parts |
1.We could be responsible for the delivery by sea, and you could find your own agent of transportation. 2.Sound production management and Reliable sea forwarder for many years guarantee the timely delivery. 3.Experienced package guarantee the quality of equipment and ensure customers’ satisfying. *Shipping by LCL or FCL *Packed with plastic film or bubble film *Fix with iron frame for big tank, lay down in the container *Up to export standard, make sure everything is safeA. Malt milling machine Capacity: >300kg/h; Type: Roll-type briquetting press B.Brewhouse System: There are two alternatives: (1)Mash/kettle tun & Lauter/whirlpool tun (2) Mash/lauter tun &Kettle/whirlpool tun
C.Fermentation System: (1)The volume of fermenters is as same as mash tun or twice of it. For different volumes,we can manufacture conical fermenter with large cone angle and small angle. (2)We usually configure 6 pieces of fermenters.For the manhole, we also have top opening and side opening for option.D.Chilling system: We configure one ice water tank and one cold water tank. E:Refrigeration machine: Specification：4HP,Copeland inside.
F: Control system: The control system includes electricity control cabinet and temperature meters. We have Siemens PLC control and Digital Panel control.
